Magico S3MKII

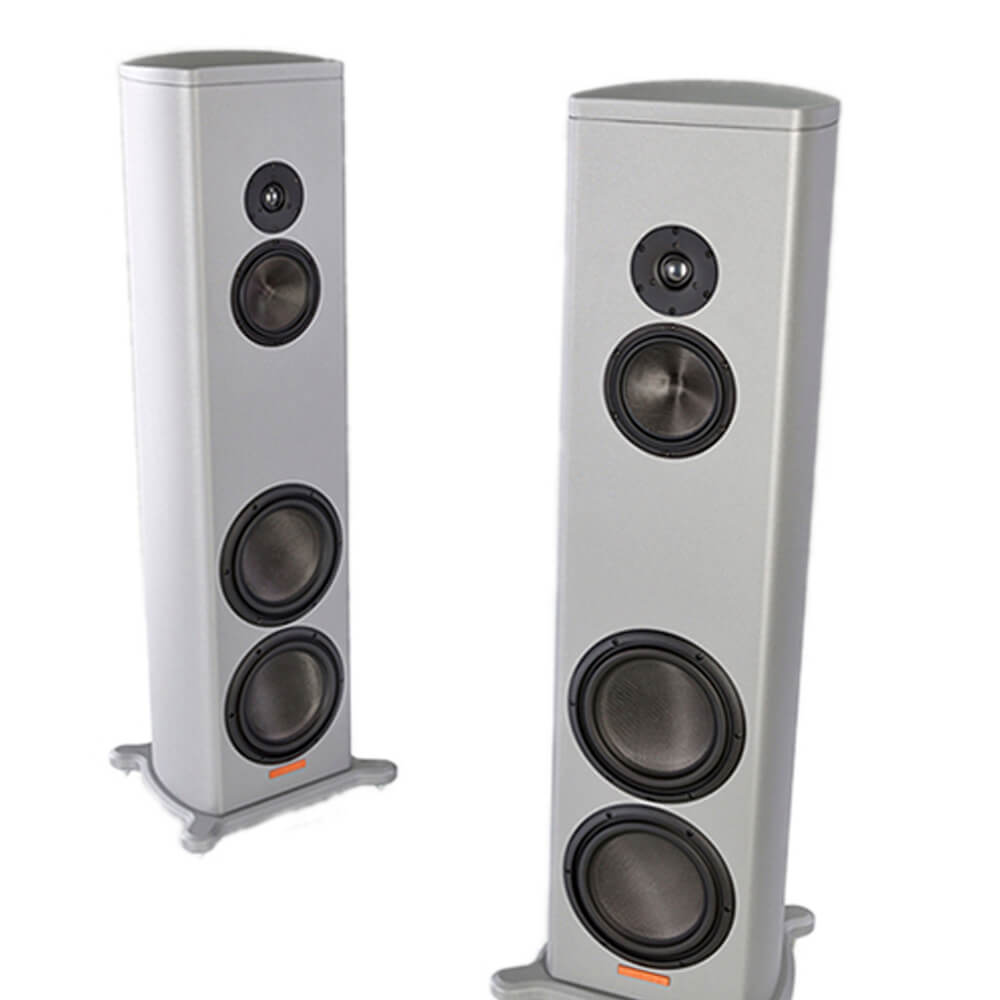

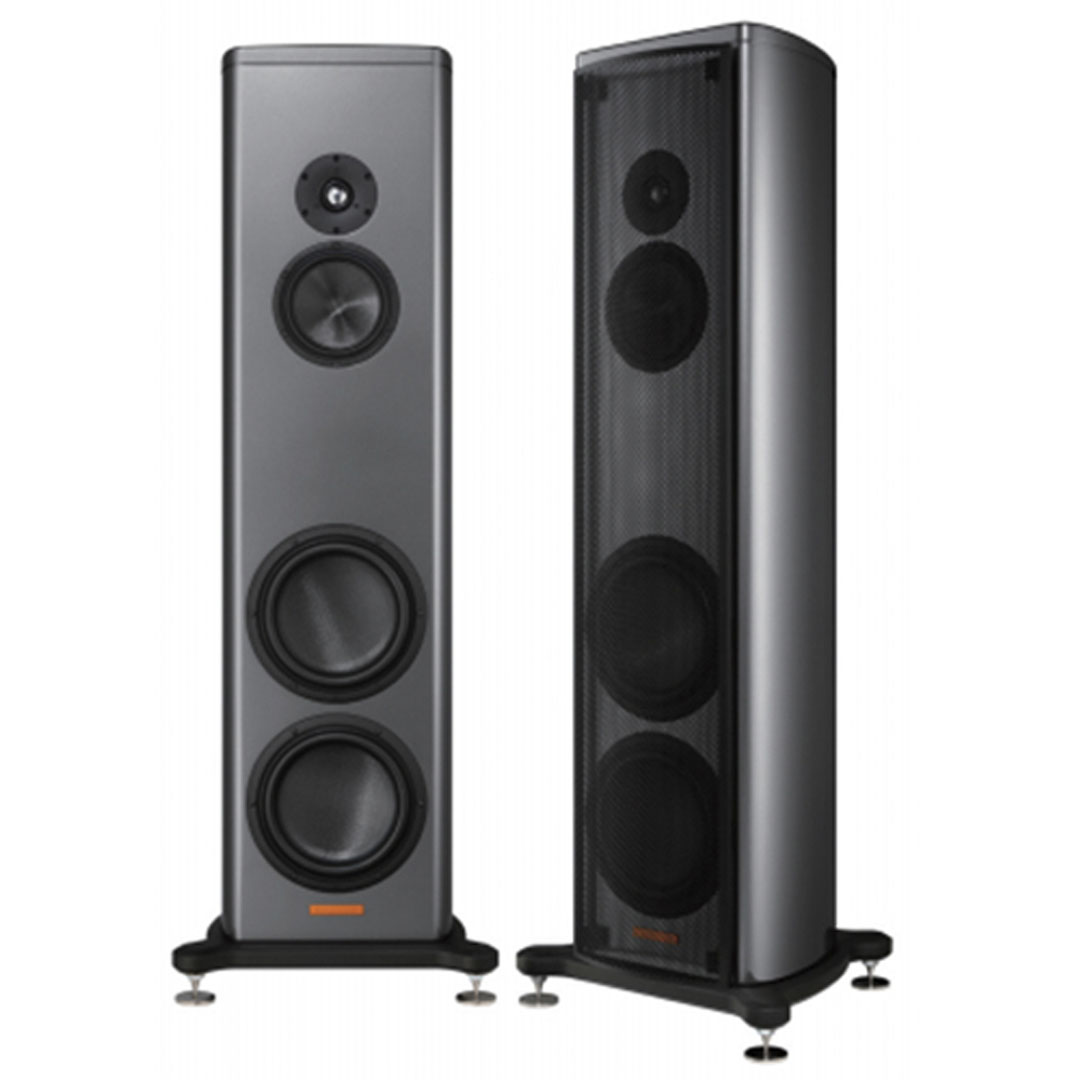

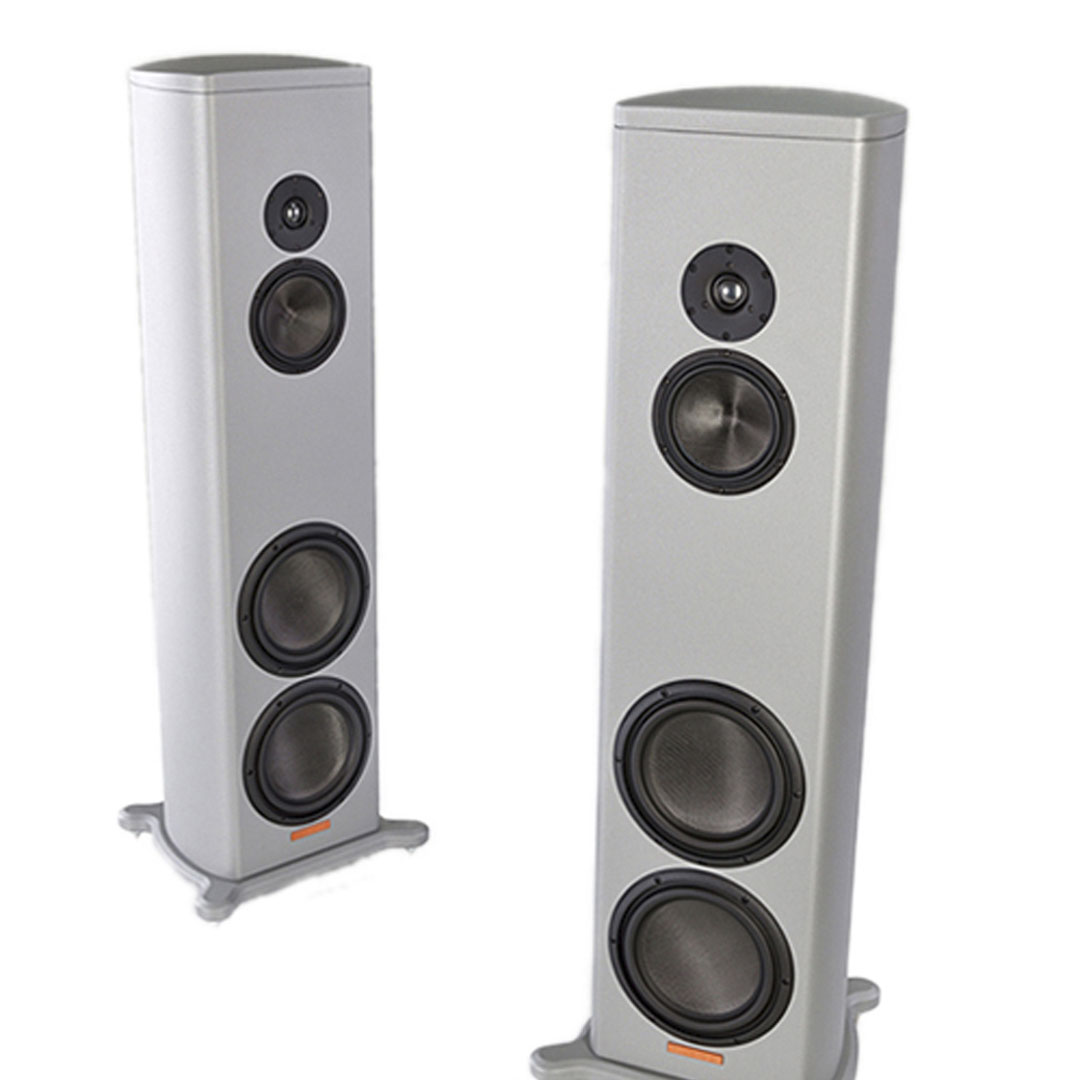

Magico S3 Mk II Floor Standing, 3-Way Loudspeaker (Four Driver) Design HAYWARD, CA – Magico, the Leader in High-Performance Loudspeaker Design and Manufacture, is pleased to announce the new S3 Mk II.

The S3 Mk II nestles in between the S1 Mk II and S5 Mk II and features all of the advanced design elements of the S-Series Mk II models, including a new 9-inch bass driver with the lowest measured distortion born from the design and engineering theories applied to the limited-edition, 10th Anniversary M-Project.

The S3 Mk II’s superlative high frequencies are provided by a 1-inch Magico diamond-coated beryllium-diaphragm tweeter that offers matching sensitivity, wide dispersion, and increased power handling over the original S-series tweeter. A new aluminium housing for the magnet structure minimises overall resonance and improves the isolation parameters for the tweeter dome element. The long-throw voice coil enables lower distortion and optimal cutoff frequencies that enhance driver integration with the midrange driver.

Magico’s extraordinary midrange reproduction is attained from a proprietary 6-inch driver that also sets a new benchmark for measured performance. The cone material is formulated using MultiWall carbon fiber and a layer of XG Nanographene, which when combined is 20% lighter and 300% stiffer than the previous S-series cone designs. The purpose-built sub-enclosure is made of a proprietary polymer material which provides an isolated and optimised environment for the midrange driver to operate within.

Deep, powerful, and accurate bass frequencies result from two newly designed 9-inch Magico bass drivers that are produced with advanced manufacturing techniques using the same new Multi-Wall carbon, Nanographene cone. The powerful magnet structure controls a 5-inch pure Titanium voice coil that has a 1/2-inch of linear excursion and produces clean, undistorted sound pressure levels up to 112dB @ 50Hz/1-meter.

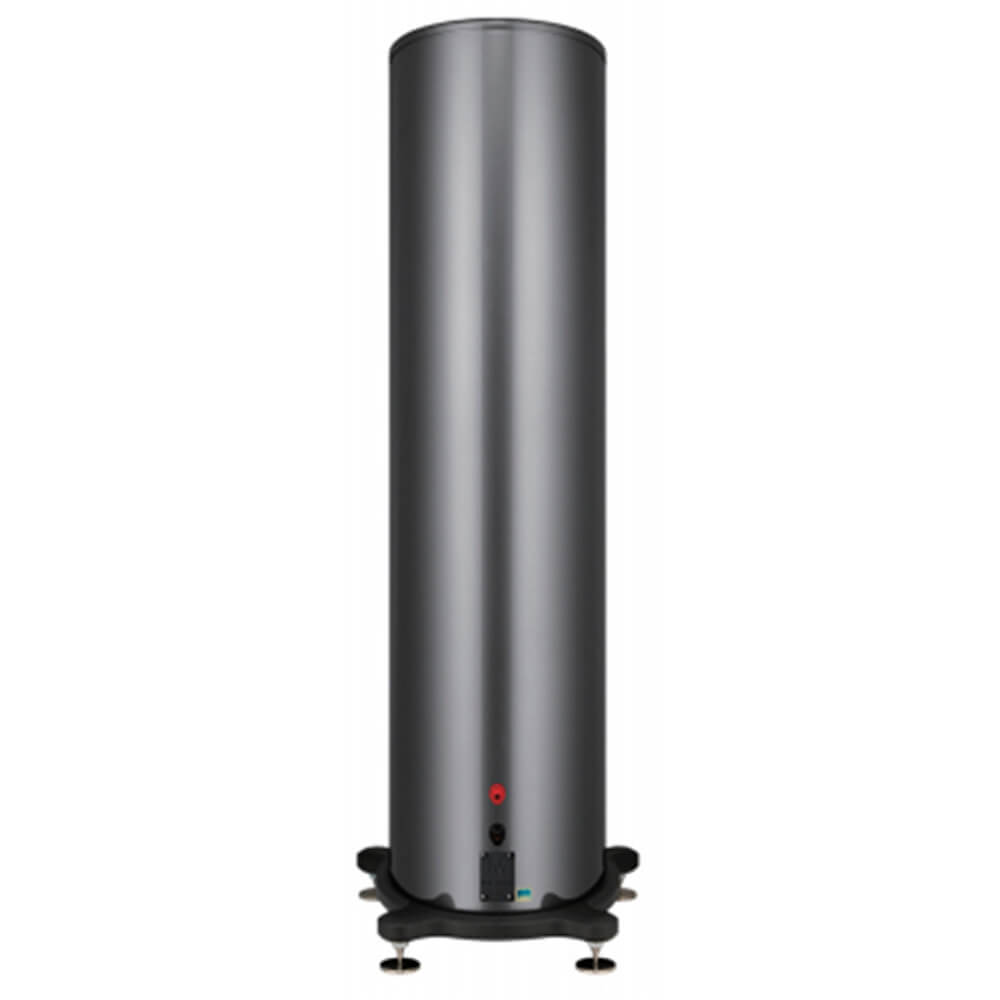

The monocoque enclosure of the S3 Mk II is formed from a single piece of extruded aluminium that is 3/8-inch thick and 12-inches in diameter. The new aluminium top plate is machined into an elegant 3D convex shape to minimise enclosure diffraction and break-up vertical standing waves. A massive base plate incorporates a newly designed 4-point outrigger support system that lowers the speaker’s centre of gravity and increases overall stability, resulting in a lower noise floor and increased dynamic range.

All four drivers in the S3 Mk II are acoustically integrated using Magico’s exclusive Elliptical Symmetry Crossover topology that utilises state-of-the-art components from Mundorf of Germany. The dividing network maximises frequency bandwidth while preserving phase linearity and minimising intermodulation distortion. Individual driver performance and the loudspeaker in its final form are tested and optimised for acoustical, mechanical, electromagnetic, and thermal behaviours using the latest state-of-the-art Finite Element Analysis simulation testing equipment.

The S3 Mk II is available in two separate finishes:
M-Cast (textured satin coat)
M-Coat (smooth high-gloss paint).

Thông số kĩ thuật:

Driver Complement

1  1” 1" MBD7 Diamond Coated Beryllium Dome
1  6” M390G XG Nanographene Cone
2  9” M905G XG Nanographene Cone

Measurements
