All models feature Revel’s low-distortion motor structure designs with aluminum tweeters and Micro Ceramic Composite (MCC) cone woofers for true audiophilegrade performance and easy timbre-matching to Revel floorstanding, monitor and center channel loudspeakers.
Installation is quick and easy with a patented installation mechanism that doesn’t require any tools for clamping to the drywall and accommodates a wide variety of wall thicknesses and construction types.For the finishing touch, frameless grilles attach magnetically giving the loudspeaker an elegant, yet unobtrusive look. All eleven in-wall loudspeaker models include square grilles to provide a perfect match for existing wall fixtures and lighting.
With this new in-wall loudspeaker product line, there is a loudspeaker to suit any application from background audio to high-end multichannel home theater installations proving once again that Revel builds the World’s Finest Loudspeakers
SPECIFICATIONS:

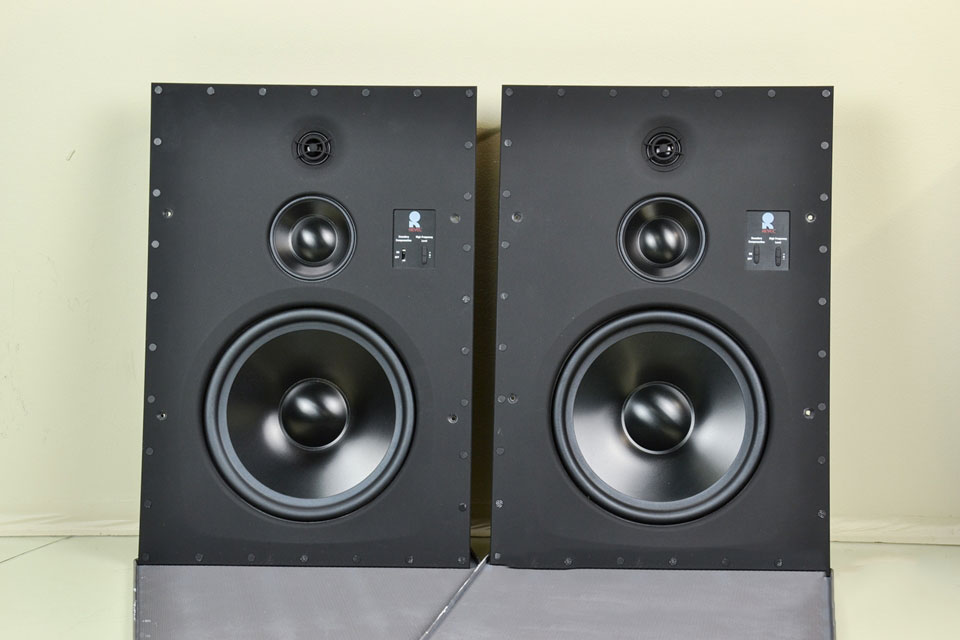

| Description | 9" In-Wall Loudspeaker |
| High Frequency Extension (-10dB) | 3-position HF level control |
| Low Frequency Extension | LF boundary compensation |
| Crossover Frequencies (Hz) | Advanced high-order crossover network |
| High-frequency Drive Components | 1" aluminum dome swiveling high-output tweeter with waveguide |
| Mid-frequency Drive Components |
3.5" micro-ceramic composite (MCC) cone, cast-aluminum frame high-output midrange |
| Low-frequency Drive Components |
9" Micro-Ceramic Composite (MCC) Cone, Cast-Aluminum Frame High-Output Woofer |
| Features |
Cutout dimensions (H x W): 17.4" x 11.6" (44.3 cm x 29.5 cm) • Includes zero-bezel magnetic grille • Grille finished dimension (H x W): 18.5" x 12.7" (47.0 cm x 32.3 cm) |
| Mounting |
RollerLock tool-free installation mechanism • Compatible with wall material thickness range: 0.5" – 1.0" (1.3 cm – 2.5 cm) |
| Depth | Mounting depth: 3.7" (9.4 cm) |
| Weight | Weight: 10.8 lb (4.9 kg) / Shipping weight: 12.8 lb (5.8 kg) |
