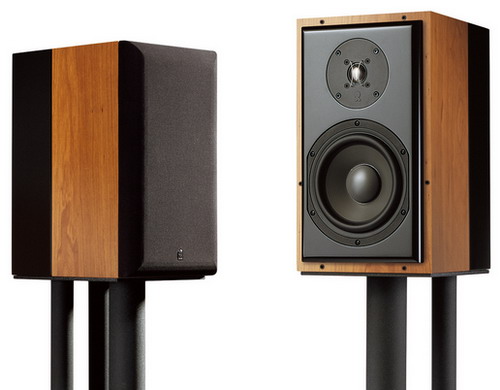

The new M22 continues to elevate the performance standard, featuring newly developed driver technology shared with the F32 floor-standing speaker system, along with a new slim cabinet design that allows tremendous placement versatility and high visual appeal.
Featuring a high power handling, magnetically-shielded 6½-inch cast-frame woofer incorporating Revel’s exclusive Organic Ceramic Composite Cone technology along with a substantial 2-inch diameter flat-wire edge-wound voice coil, the M22 woofer also includes a proprietary Dual Neodymium magnetic motor system for tremendous dynamic range and freedom from compression. This remarkable driver also features sophisticated magnetic flux focusing systems, comprising a copper modulation control cap as well as an aluminum flux stability ring for unparalleled magnetic linearity and incredibly low distortion.
The M22 is a two-way monitor featuring a 6.5-inch aluminum woofer and 1-inch tweeter. Together, they produce an expansive sound with low distortion that belies the M22’s compact dimensions. Threaded inserts in the enclosure accept the optional M20 stand. The rear panel includes a switch for placement on a stand, or flush mounting in a cabinet or wall.
Treble frequencies are ably reproduced by our exclusive pure, magnetically-shielded 1-inch titanium dome wide dispersion tweeter, featuring an advanced co-polymer surround and Ferrofluid cooling, providing true pistonic behavior for reproduction beyond the limits of human hearing.
Internally, the M22 features physically separated high-order crossover boards that incorporate precise fixed-resistor, high-frequency level trimming, as well as a boundary compensation system that allows for optimum timbral response with either stand mounting or shelf mounting. During production, each M22 is individually calibrated to match the production reference standard to within a fraction of a decibel, assuring outstanding consistency and timbral accuracy.
The elegant cabinetry features gently tapered sides that visually suggest an even smaller appearance and is finished in a choice of natural cherry or black ash fine wood veneers. A beautifully designed optional black pedestal elevates the M22 to an ideal height and aesthetically matches the optional C32 pedestal.
Thông số kỹ thuật:
| Recommended usage | Floorstanding |
| Type | Vented (bass reflex) |
| Enclosure type | Rear |
| Port (bass reflex) location | 46Hz (measured at -1dB) - 16kHz |
| Frequency range | 85dB at 2.83V/1m |
| Sensitivity | 6.4 ohms |
| Nominal impedance | 4.8 ohms |
| Minimal impedance | 2 |
| Number of drivers | 2200Hz |
| Crossover frequencies | Manual frequency adjustments |
| Features |
Drivers information Woofer / Midbass, Tweeter |
| Drivers include | 1 x 6.5 in |
| Woofer/Midbass | Ceramic |
| Woofer/Midbass's cone material | 1 x 25.4 mm |
| Tweeter | (Soft) dome |
| Tweeter type | Body 8.63 in x 39.90 in x 11.38 in |
| Dimensions (WxHxD) | 24.00 lb |
