With appropriate hardware, it’s possible to affix virtually any compact loudspeaker to a listening room wall, and manufacturers are free to promote any model of a certain size and weight as “wall-mountable.” But very few audio manufacturers have the facilities and expertise needed to determine just how their on-wall systems will sound when actually placed on or near a wall.
The performance of Revel Concerta™ on-wall loudspeakers has been extensively evaluated in a variety of on-and near-wall installations through blind listening tests in the Revel Multichannel Listening Lab. Using proprietary 36-point anechoic measurements, Concerta on-wall speakers have been shown to deliver remarkably flat frequency response across an exceptionally wide listening area for clean, accurate sound in real-world listening rooms. None of the competing systems tested under identical conditions performed as well. Remarkably, Revel engineers could not identify a single competing on-wall system they considered suitable for on-wall use, based on either laboratory measurements or double-blind listening tests.
With advanced drivers utilizing Micro Ceramic Composite (MCC) cones and domes, along with high-order crossovers, and housed in rigid aluminum enclosures styled to complement the look of LCD and plasma displays, Concerta on-wall systems will fill any room with brilliant, distortion-free sound from virtually any amplifier.

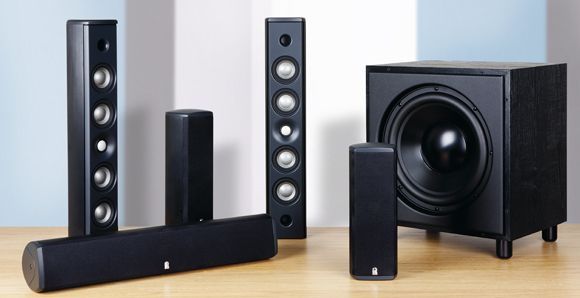

Concerta speakers are voice-matched for use in any combination to build movie and music systems of uncommon realism. The series includes an innovative 3-channel LCR system mounted in a single enclosure, a highly capable center channel speaker, a choice of satellites and an impressive 250-watt powered subwoofer. The B120 sub can be connected directly to your system or operated wirelessly with an optional transmitter, for complete placement freedom.
All Concerta on-wall woofer, midrange and tweeter diaphragms are constructed of Micro Ceramic Composite (MCC), a new material created by anodizing both sides of an aluminum core. Anodizing both sides of an aluminum core adds strength and stiffness - but very little weight - to a material already well suited for use in transducer diaphragms.
SPECIFICATIONS:
| Description | Concerta Series, 2½-Way On-Wall Loudspeaker |
| Low Frequency Extension | –3dB @ 110Hz –6dB @ 100Hz –10dB @ 80Hz |
| Sensitivity (2.83V @ 1m) | 89dB |
| Nominal Impedance | 8 Ohms |
| Crossover Frequencies (Hz) | 2-1/2-Way at 400Hz and 2.2kHz |
| High-frequency Drive Components | 1" (2.5 cm) micro-ceramic composite (MCC) cone tweeter |
| Mid-frequency Drive Components | Dual 3" (7.5 cm) micro-ceramic composite (MCC) cone midranges |
| Low-frequency Drive Components | Dual 3" (7.5 cm) micro-ceramic composite (MCC) cone woofers |
| Height | Dimensions (H x W x D): 22.9" x 4.3" x 4.5" (58.2 cm x 10.8 cm x 11.4 cm) |
| Weight | Shipping weight: 6.8 lb (3.1 kg) |
| Finishes | Black aluminum finish |
| Included Accessories | Includes wall-mounting bracket |
| Optional Accessories | Optional Floor Stand |
