Revel C25

Còn hàng

Giá: 0₫

Tổng quan

The C25 is a true full range 2-way 5.25” center channel loudspeaker that was designed to be the true acoustical anchor for the entire system. It will deliver an impressive combination of wide frequency range, uncompressed dynamic range and low distortion across the entire audible spectrum.

High frequency response is supported by 1 inch aluminum dome tweeters that were derived from Revel’s Performa3 series. Low/Mid range frequency response is supported by 5.25” Aluminum cone woofers featuring low-distortion motor-structures for greater clarity and accuracy with improved sensitivity and output capability.

The patented wave guide design improves tweeter to woofer blend and significantly improves off-axis response for consistent performance over a wide listening area. In doing this we sacrificed no details by making sure no fasteners were visible allowing the speaker to show enhancing smooth lines of the cabinet and magnetically attached grilles. To finish the enclosure, we selected high gloss black and white finishes to highlight the features of this beautiful speaker.

Highlights

Derived from Revel’s award-winning Performa3 Series Loudspeakers

5.25"deep anodized aluminum cone woofers

1" Aluminum Tweeter

Fourth generation Acoustic Lens waveguides

Computer optimized driver positioning and network integration

No visible fasteners on the front, top or side panels

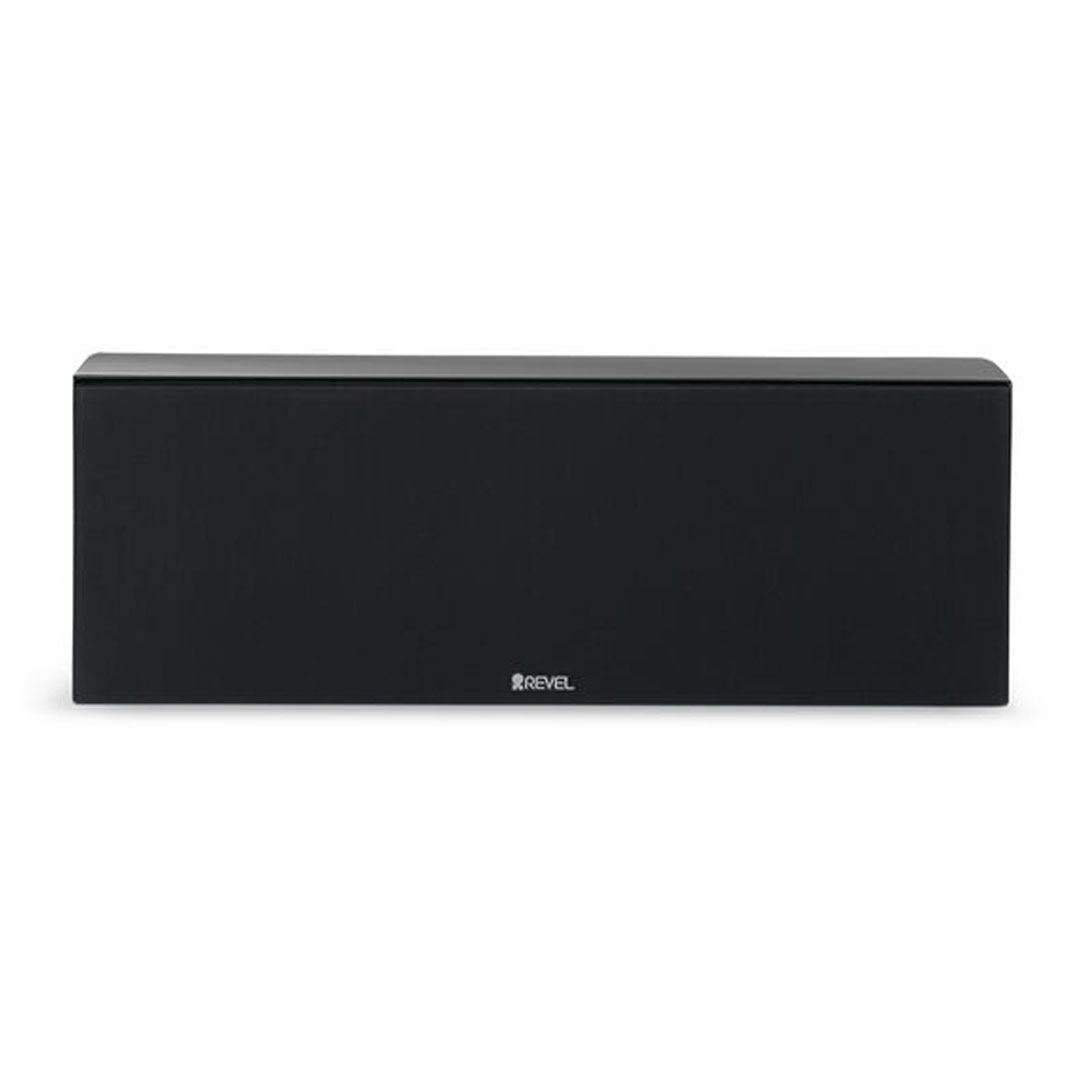

Magnetic grilles with brushed metallic logos

High-gloss Black and High-gloss White painted finishes

Thông số kĩ thuật:

Crossover Frequencies 2.1kHz
Enclosure Type Sealed
High-frequency Driver Components 1" Aluminum Tweeter with Acoustic Lens Waveguide
Nominal Impedance 6 Ohms

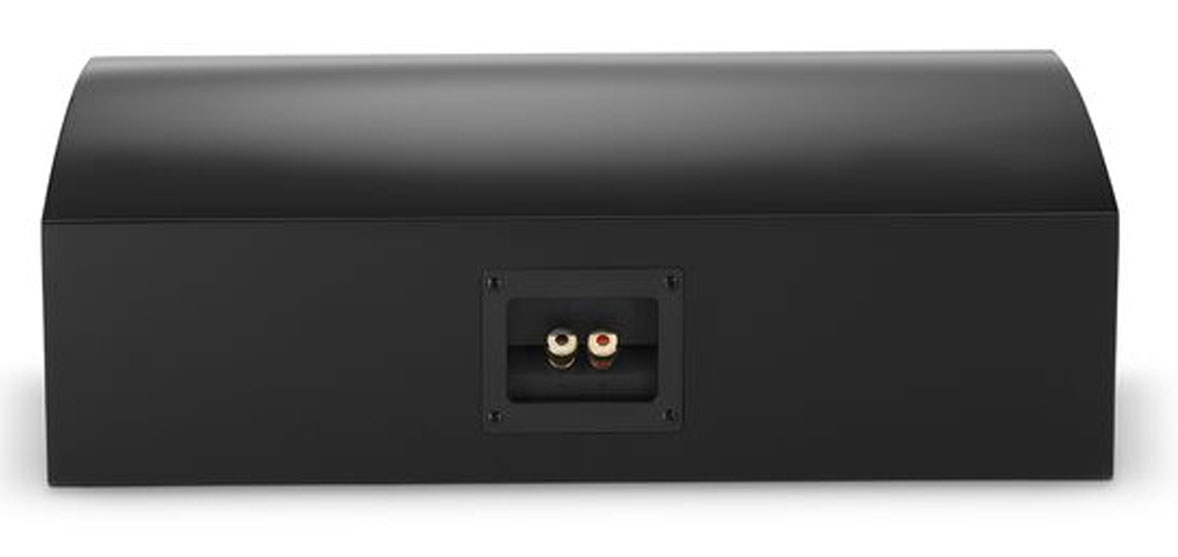

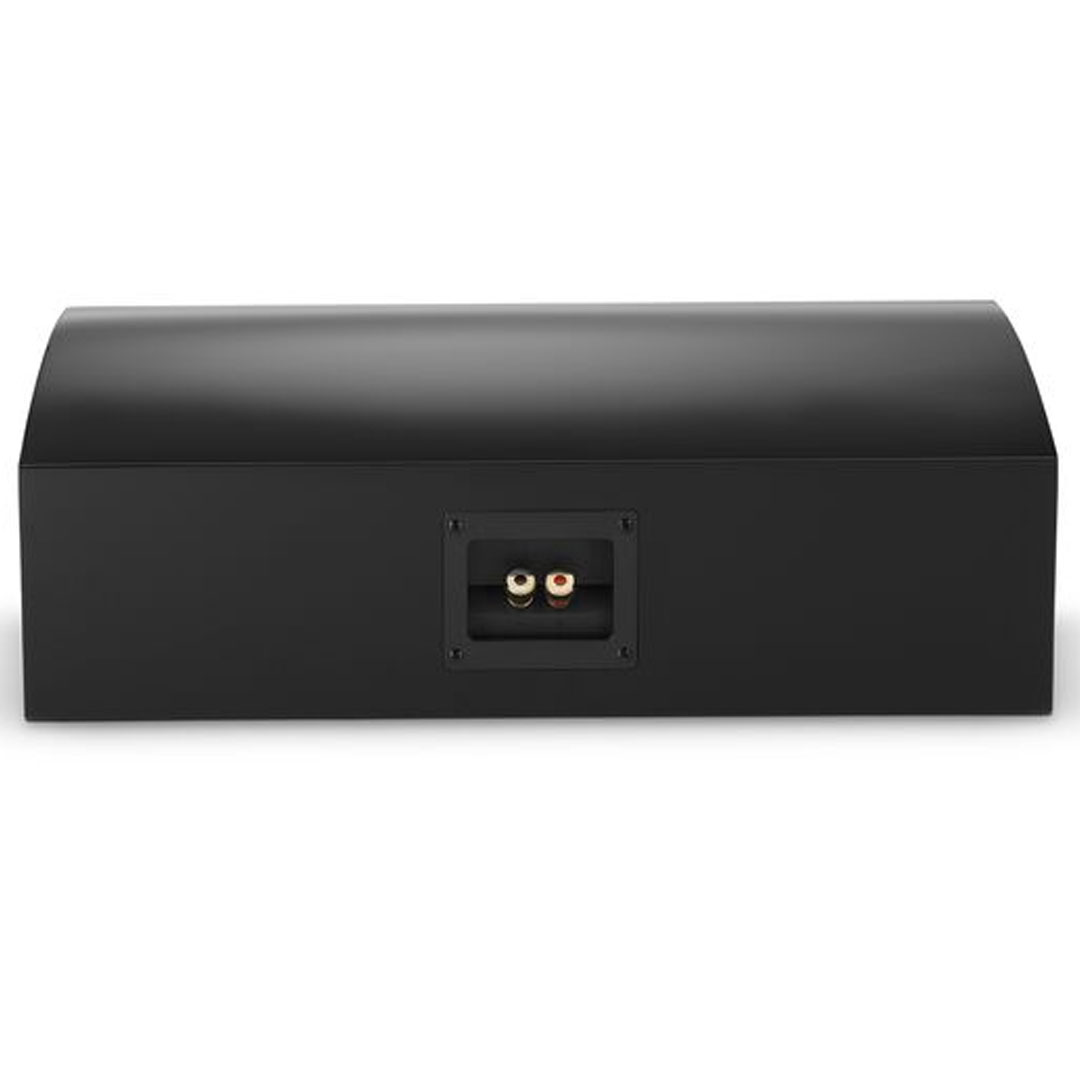

Input Connections Five-way binding posts
Low Frequency Extension 80Hz, 68Hz, 48Hz (-3 dB, -6 dB, -10 dB)
Low-frequency Driver Components 2 x 5.25" Aluminum Cone Woofer
Recommended Amplifier Power 40-120W
Sensitivity 89dB (2.83V @ 1M)
Dimensions 7.25" x 19.45"x 10.1" (18cm x 49cm x 27cm)—Including Feet
Weight 20 lbs

Audio Specifications

Crossover Frequencies 2.1kHz
Enclosure Type Sealed
High-frequency Driver Components 1" Aluminum Tweeter with Acoustic Lens Waveguide
Nominal Impedance 6 Ohms
Input Connections Five-way binding posts
Low Frequency Extension 80Hz, 68Hz, 48Hz (-3 dB, -6 dB, -10 dB)
Low-frequency Driver Components 2 x 5.25" Aluminum Cone Woofer
Recommended Amplifier Power 40-120W
Sensitivity 89dB (2.83V @ 1M)
Dimensions 7.25" x 19.45"x 10.1" (18cm x 49cm x 27cm)—Including Feet
Weight 20 lbs
