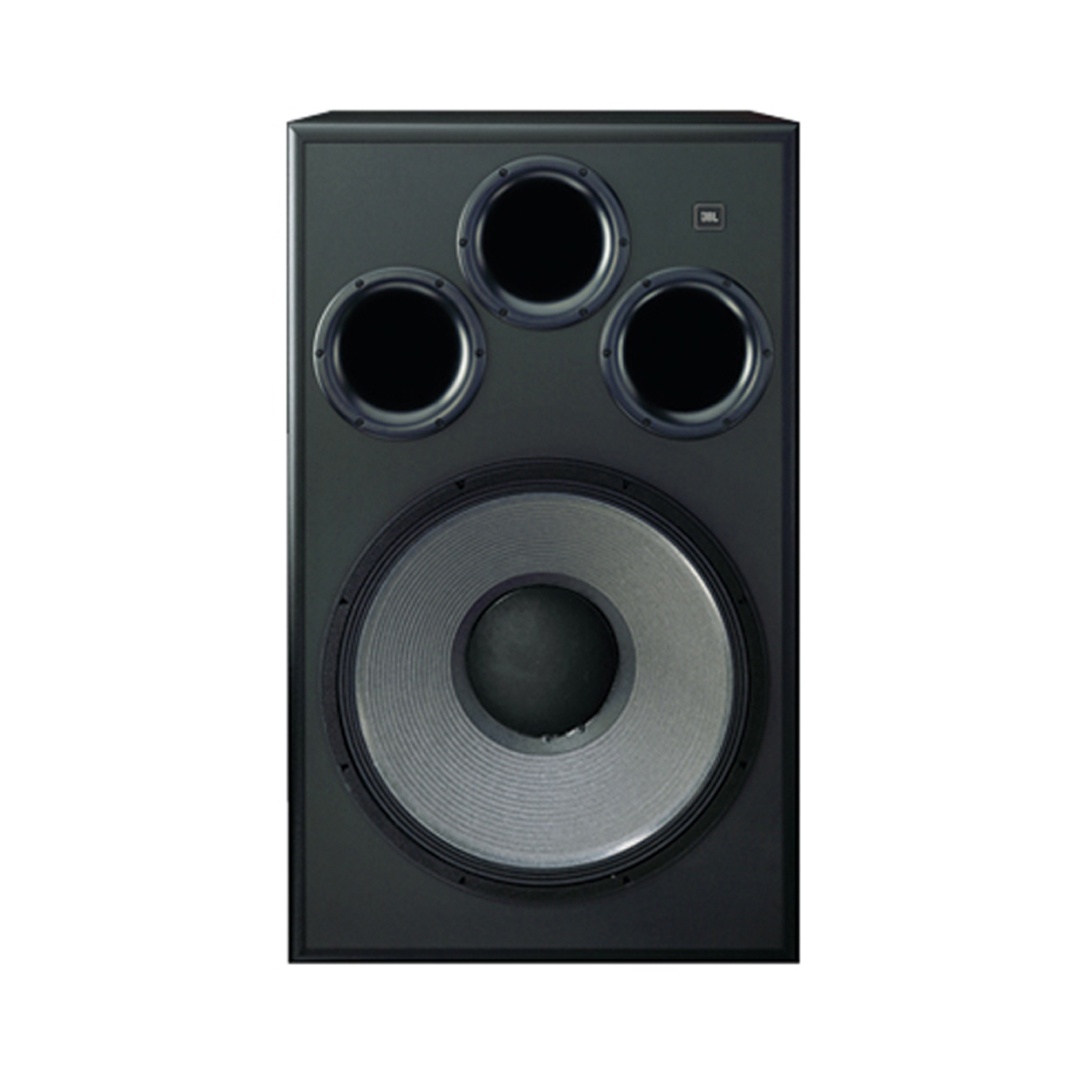

THX Certified
18" Poron-fiber-cone, Cast-frame Woofer
Vertical or Horizontal Orientation
Industrial Cabinetry
Front Ported Enclosure for Easy Installation as Built-in
SPECIFICATIONS:
| ACOUSTIC & ELECTRICAL SPECIFICATIONS | Nominal Impedance 8Ω | |
| Max Amp Power 800 watts* | ||
| Frequency Response 20Hz – 200Hz | ||
| Sensitivity 97dB @ 50Hz | ||
| SYSTEM COMPONENTS | Low-Frequency Transducer 2242HPL 18" (457mm) | |
| Cone transducer | ||
| 301361-003 | ||
| DC Resistance 4.7 ohms ±10% | ||
| AURAL SWEEP TEST SPECIFICATIONS | L.F. Aural Sweep Test 15.0V Input 16Hz to 250Hz | |
| PHYSICAL SPECIFICATIONS | Enclosure Dimensions 34-1/2" x 21" x 22" |
(H x W x D) (876mm x 533mm x 559mm) |
| plus knobs | ||
| Weight 129 lb (58.5kg) Each | ||
| WARRANTY | Refer to Warranty Statement packed with each product. | |
|
* The maximum recommended amplifier power rating will ensure proper system headroom to allow for occasional peaks. We do not recommend sustained operation at these maximum power levels. |
||
