The K2 S9900 continues the tradition of the K2 S9800 and also incorporates key design elements from the DD66000. Despite its 21st century power and sophistication, Project K2 S9900 is a synthesis of tradition and technology. It reflects the design, material, engineering and manufacturing expertise developed and refined through nearly six decades of experience that are the exclusive legacy of one loudspeaker brand – JBL.

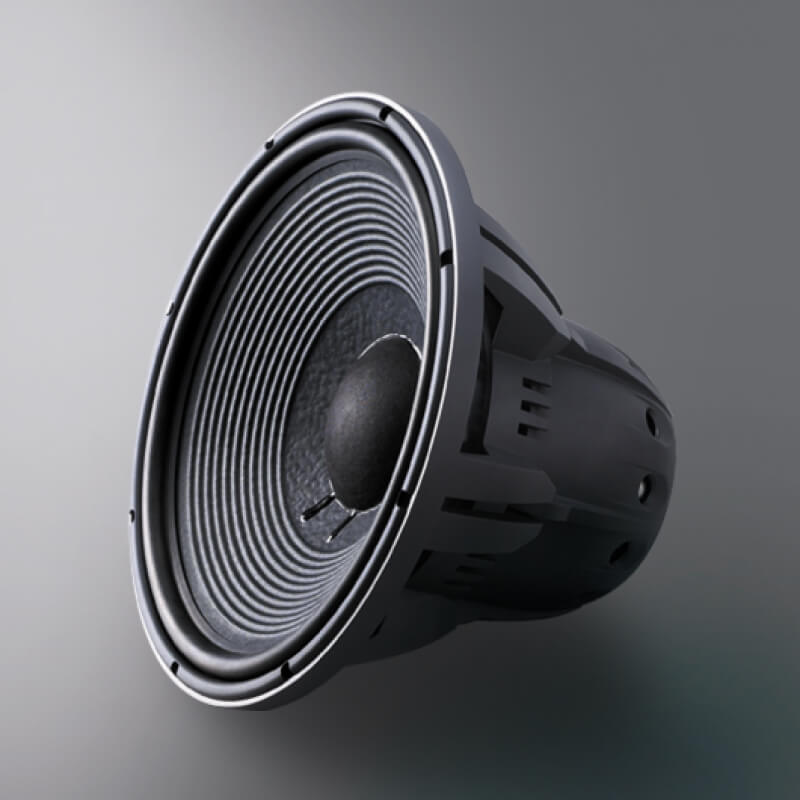

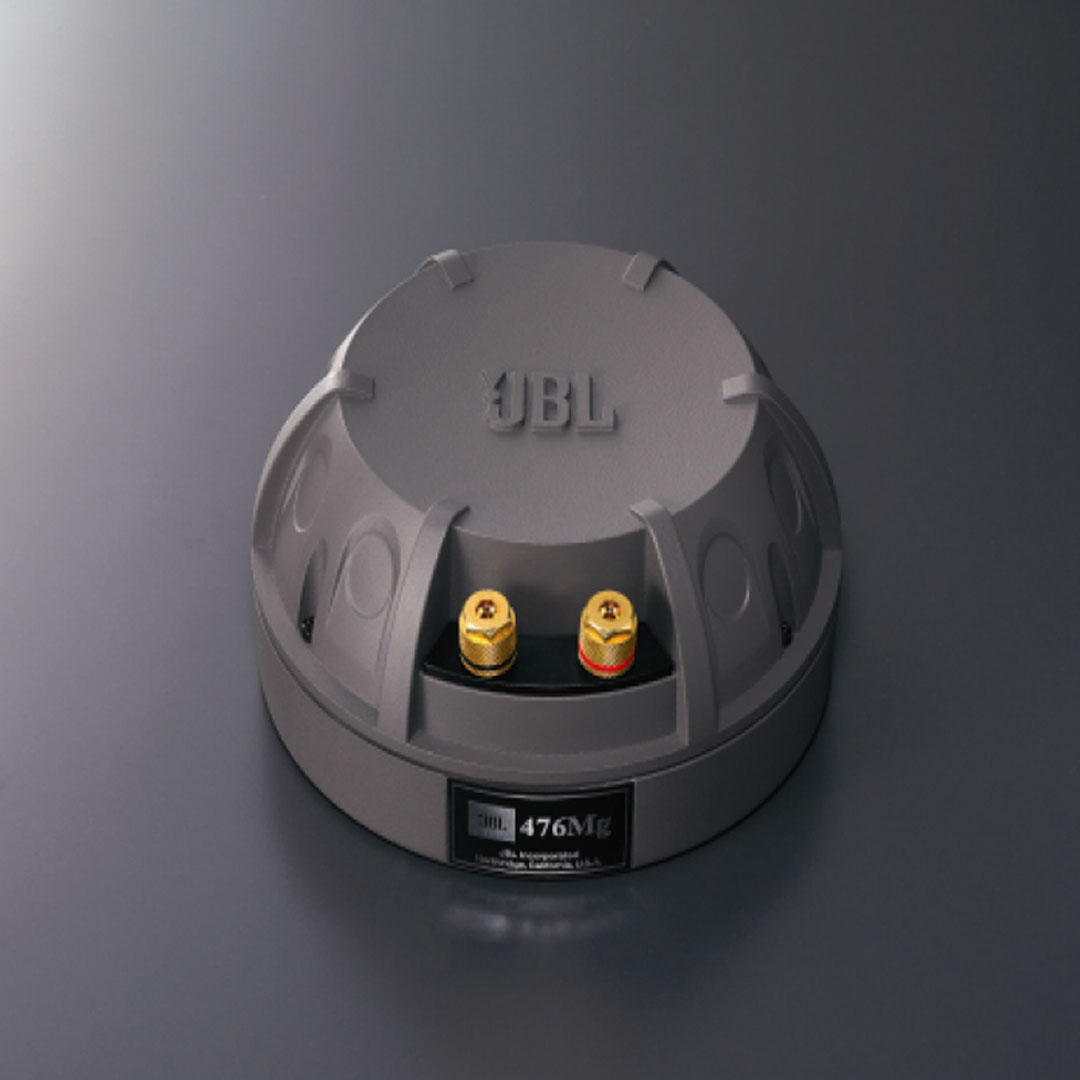

The K2 S9900 has a single midrange crossover at 900Hz, blending one 1500AL-1 woofer to the 476Mg compression driver and horn combination. Above 900Hz, the HF compression driver and horn combination operates unassisted, all the way to 20kHz. The 045Be-1 UHF driver is brought in at 15kHz to cover 2 octaves of ultrasonic frequencies.
Phiên bản đặc biệt năm 2016
Thông số kĩ thuật:
|Description||Three-Way, 380mm Floorstanding Speaker|
|380mm pulp-cone woofer(1500AL); 100mm 476Mg|
high-frequency compression driver of magnesium-alloy foil and 25mm -throat
Bi-Radial® horn; 25mm pure-beryllium compression driver (045Be) and 12.8mm -throat Bi- Radial horn (65˚ vert. x 35˚ horiz.)
|Frequency Response||48Hz–50kHz (–6dB)|
|Power Handling||400 watts RMS / 800 watts peak|
|Nominal Impedance||8 ohms|
|Dimensions (H x W x D)||1200mm x 560mm x 350mm|
