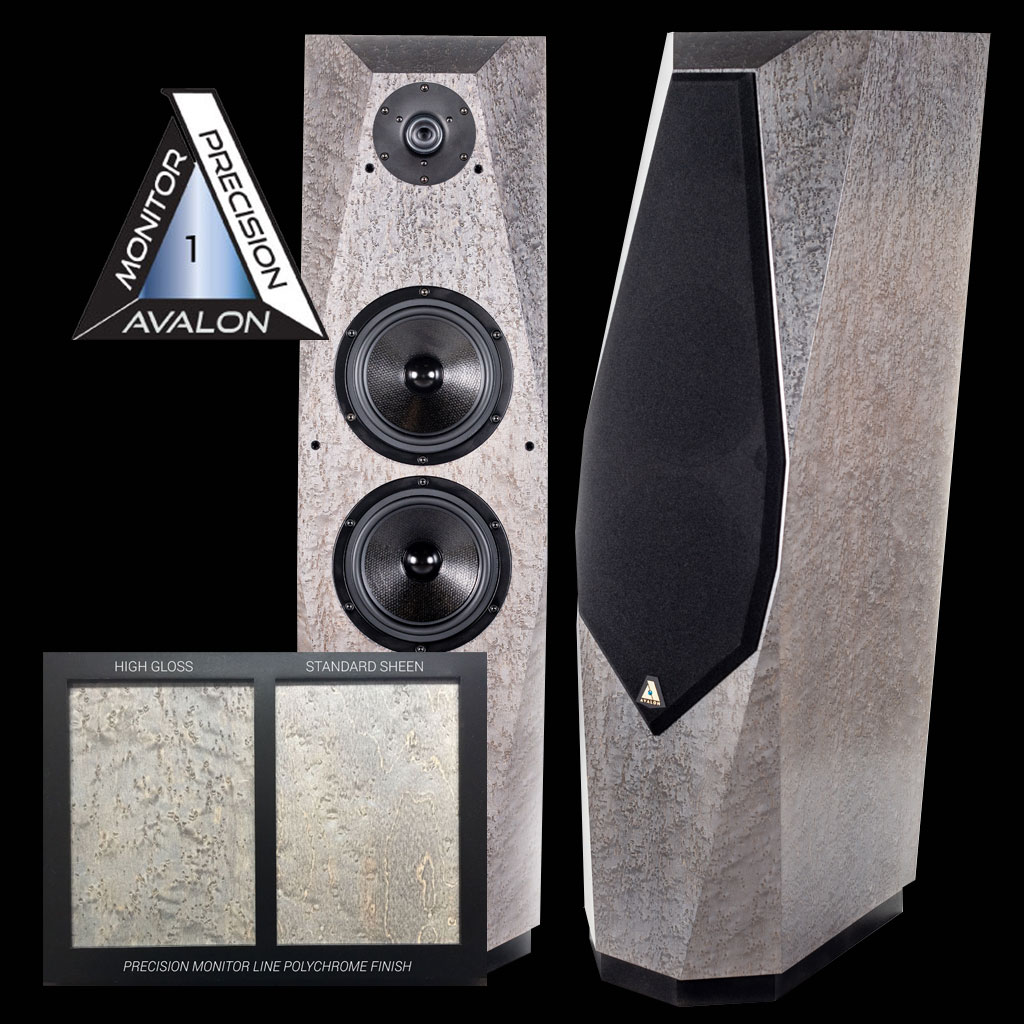

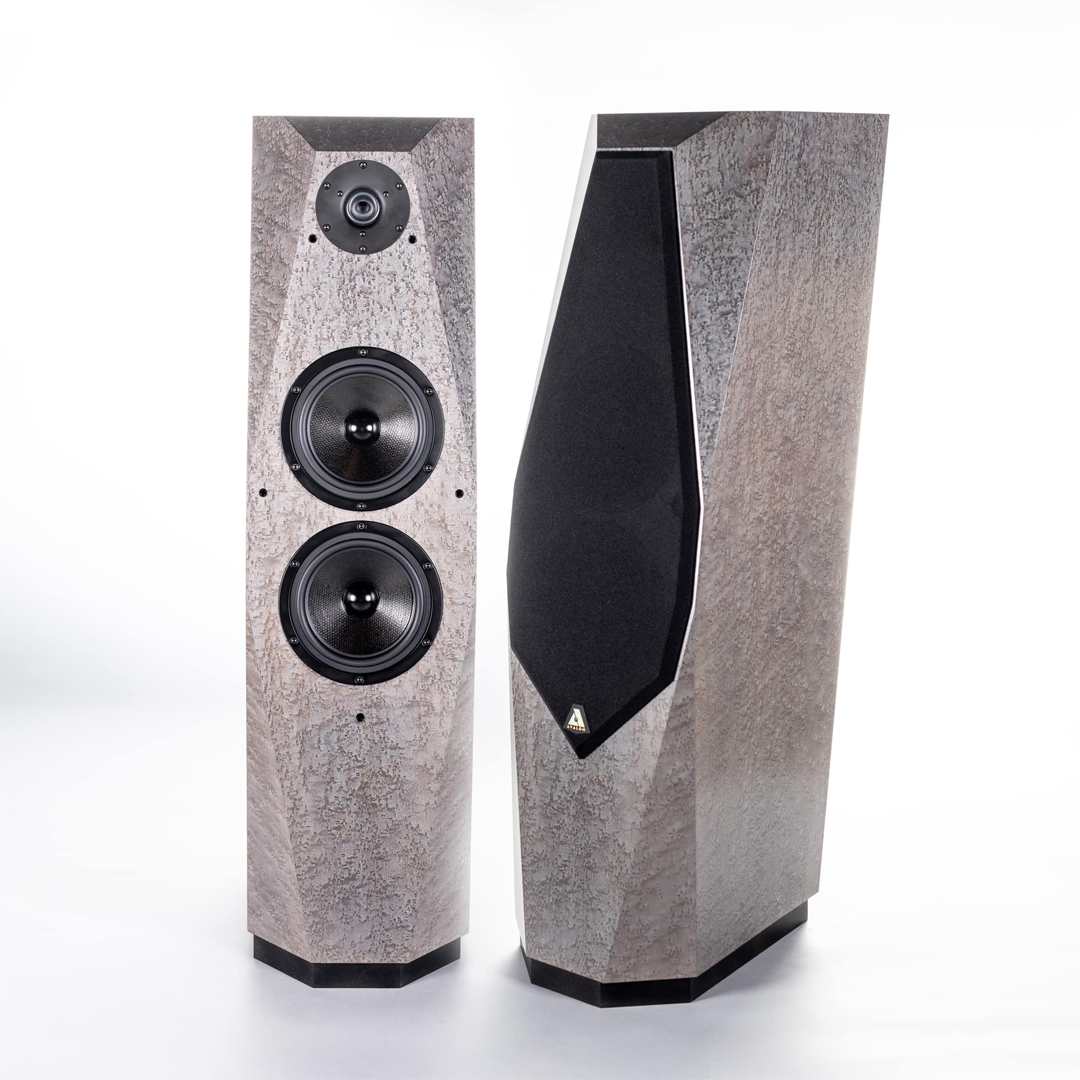

The PRECISION MONITOR 1 is a high-efficiency floor-standing reference monitor, designed specifically for generating maximum dynamic contrast and effective sound pressure levels from a compact chassis. Ease of driveability through a non-reactive impedance load presents low powered tube or solid-state electronics with an ideal interface for generating maximum SPL per watt of power applied.
Each model in the Precision Monitor line presents exceptional spatial sound-staging, recovering the lowest level hall reverberation detail, the hallmark of true high-resolution monitors. Flat frequency response and phase linear time and transient behavior deliver an accurate rendition of all the crucial elements that go into a recording. Whether for home or studio, our Precision Monitors define the state of the art in high-energy reference transducers.
PRECISION MONITOR LINE
The design goal of the PRECISION MONITOR Line is simple: Transfer as much technology as possible from our award-winning Tesseract design into a series of practically sized reference monitors. Proprietary low noise circuitry and phase coherent network technologies will dictate each driver’s performance envelope to create an accurate 3-dimensional reproduction of the original recording. Transient speed and dynamics will be paramount, presenting macro and micro dynamic contrasts to focused images within the breadth and depth of the soundstage.
The PRECISION MONITOR 1 is a high-efficiency floor-standing reference monitor, designed specifically for generating maximum dynamic contrast and effective sound pressure levels from a compact chassis. Ease of drivability through a non-reactive impedance load presents low powered tube or solid-state electronics with an ideal interface for generating maximum SPL per watt of power applied.
Proprietary Silent Inert Cabinet material/process.
Advanced light weight driver diaphragm materials minimize energy storage and time-domain distortion.
Each driver individually tested and matched for optimum performance.
Smooth, wide polar response for superlative imaging capabilities.
Exceptional impedance characteristic allows for ideal interface with any amplifier.
Crossover circuitry is hard-wired with surface-only conductors, eliminating deleterious sonic effects of printed-circuit boards.
Maximum energy transfer from low power amplification.
Careful crossover control of all magnetic field interaction.
Proprietary magnetics technology increases energy transfer and reduces noise floor.
Constrained-mode damping system absorbs cabinet vibrations.
Three and one-quarter inch thick front panel supplies acoustically inert wave-launch platform.
Proprietary phase-linear filter and damping networks
Distinctive faceted cabinet design provides optimal polar characteristics.
Thông số kĩ thuật:
|Driver Complement||1) 1inch High-energy phase aligned tweeter|
|(2) 7 inch Nomex-Kevlar Composite Cone Woofers|
|Impedance||4 Ohms Nominal|
|Frequency Response||28Hz to 25kHz|
|Recommended Amplifier Power||15 to 200 Watts|
|Wiring Methods||Two Position Binding Post|
|Dimensions||37" (94 cm) High|
|10" (25 cm) Wide|
|13" (33 cm) Deep|
|Weight||75 pounds (34 kg) each|
