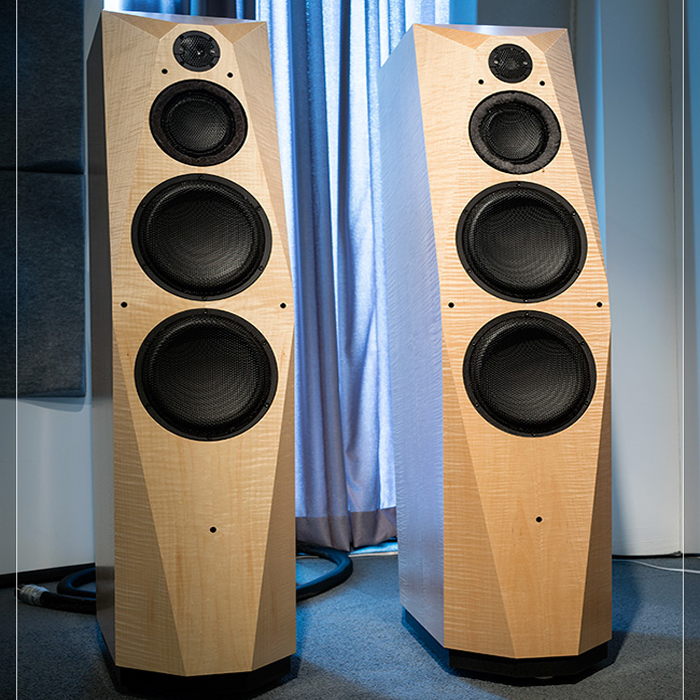

It features a completely new driver complement: a 1 inch tweeter, a 4 inch midrange and a pair of 9 inch woofers. The first two feature concave ceramic domes, while the woofers use ceramic/honeycomb cones, these being loaded in Avalon s standard downward-firing port configuration. All drivers have black cones and high-flux-density radial magnet structures. The Compás features a new cabinet design that adds additional faceting around the tweeter for the cancellation of phase distortions.
Control networks within the crossover designed specifically to target resolution and ambience retrieval under high current conditions are the heart of COMPÁS. Its unique ceramic/honeycomb woofers deliver an authoritative low frequency response with unsurpassed transient accuracy, carefully blending with the highs for a "true to source" sound reproduction. Proprietary low jitter circuitry clarifies image boundaries to a high-resolution standard suitable for professional monitoring where microphone placement and phasing are critical. Utilization of the same diaphragm materials throughout the array adds to the continuity of harmonic structure in a crisp, seamless musical presentation devoid of stored energy; its rock solid imaging presented with a palpable density through accurate and colorful harmonic structures.
Thông số kĩ thuật:
|Driver Complement||1 " Concave ceramic neodymium tweeter；|
|4" Concave Ceramic Dome Midrange(Tweeter)|
|9” Ceramic/Honeycomb Woofers|
|Sensitivity||91 dB @ rated impedance|
|Impedance||4 Ohms Nominal|
|Frequency Response||27Hz to 24kHz|
|Recommended Power||30 to 750 Watts|
|Wiring Methods||2 Position Binding Post|
|Dimensions||45" (114 cm) High|
|11" (28 cm) Wide|
|Weight||160 pounds (72 kg) each|
